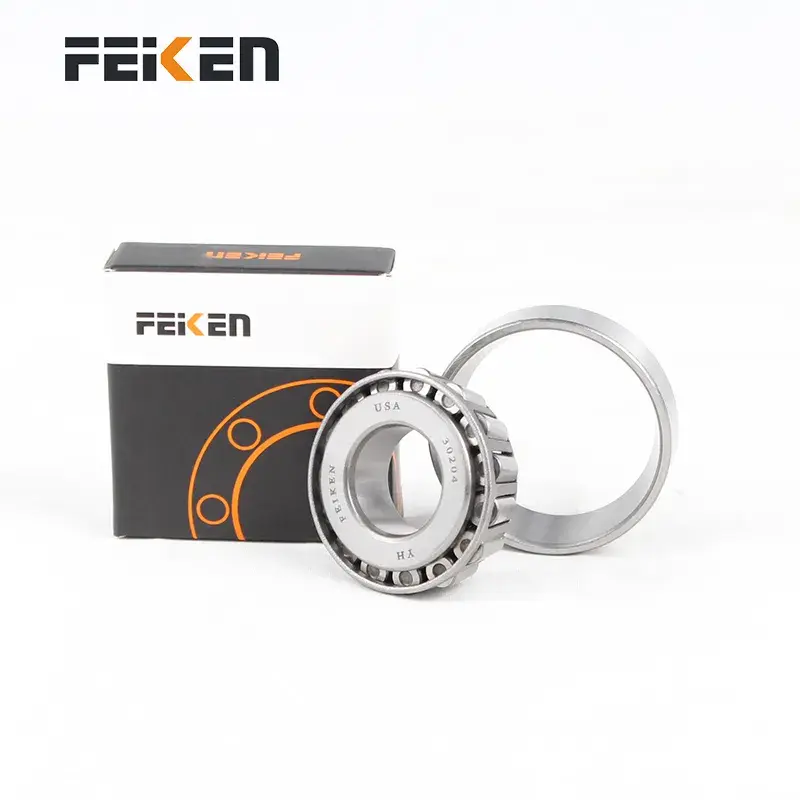

This is the most basic and widely used type of tapered roller bearing. It consists of two main separable components: inner ring component and outer ring. It is usually mounted on the shaft in reverse pairs of bearings.



Design features



Single inner and outer rings.

One-piece stamping steel cage keeps the rollers in the inner ring and isolates them evenly.

A pin cage is also provided.

Application occasion



Front wheel of vehicle

Differential and pinion configuration

Conveyor roller

Spindle of machine tool
