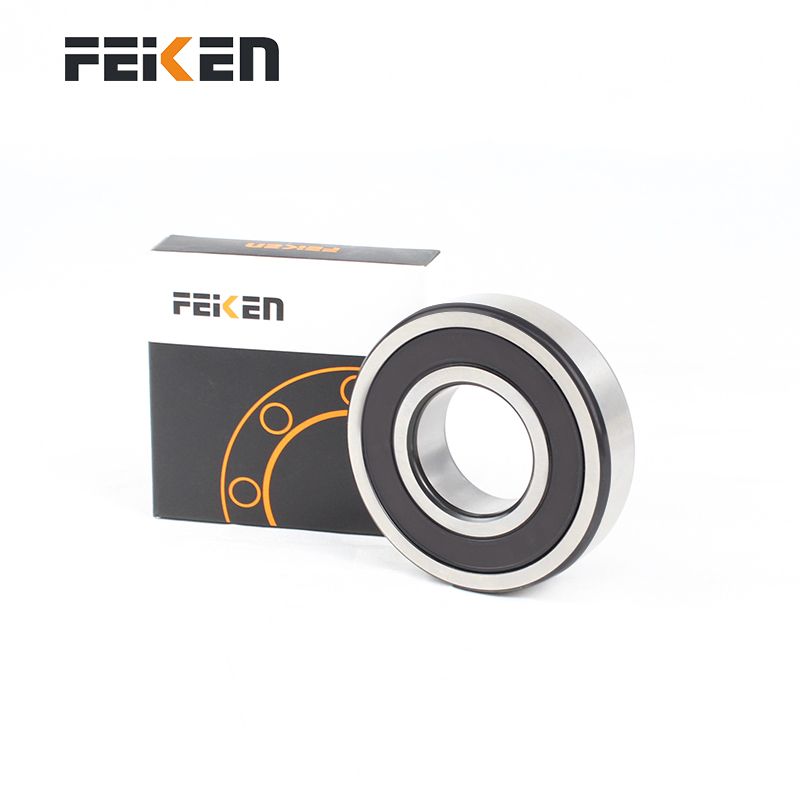

Deep groove ball bearing

Single row deep groove ball bearings are available capped (with seals or shields) or open. Open bearings that are also available capped may have recesses in the ring side faces

FEIKEN Explorer bearings - in brief

FEIKEN Explorer rolling bearings accommodate higher load levels and provide extended service life. Optimized internal geometry reduces friction, wear and heat generation, allowing heavier loads to be accommodated. Advanced surface finish reduces friction and enhances lubricating conditions.

Benefits of using FEIKEN Explorer bearings include:

significantly extended service life

increased uptime and productivity

extended lubricant life

reduced sensitivity to misalignment

reduced noise and vibration

enabling downsized applications

FEIKEN Explorer bearings are shown coloured blue in the product tables.

For bearing solutions where you want to downsize, reduce vibrations, reduce friction or increase power density in your applications, select FEIKEN Explorer.

FEIKEN Explorer bearings:

Dimensional tolerances to P6 and tighter width tolerance:

D ≤ 110 mm → 0/ –60 μm

D > 110 mm → 0/ –100 μm

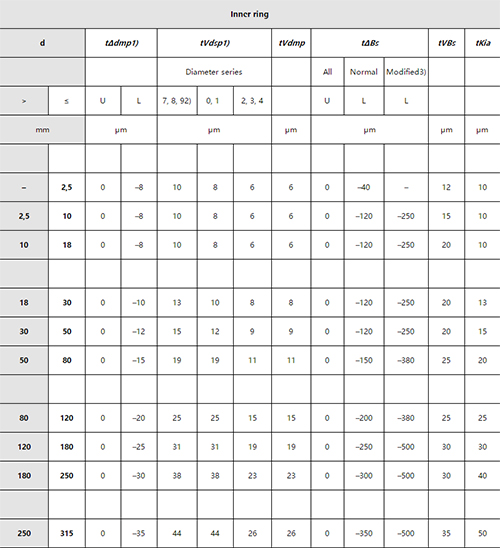

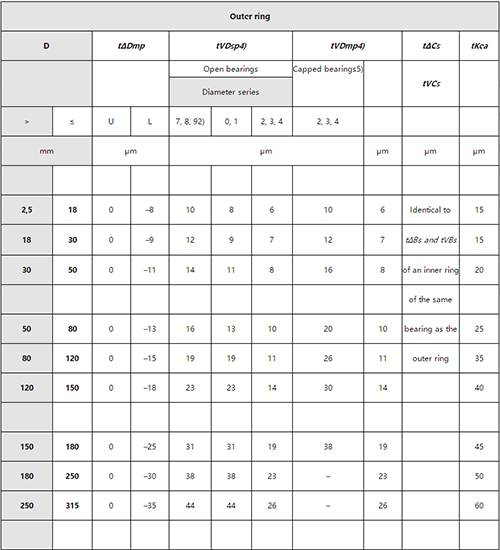

Geometrical tolerances:

D ≤ 52 mm → P5

52 mm < D ≤ 110 mm → P6

D > 110 mm → Normal

position:

Deep groove ball bearing
