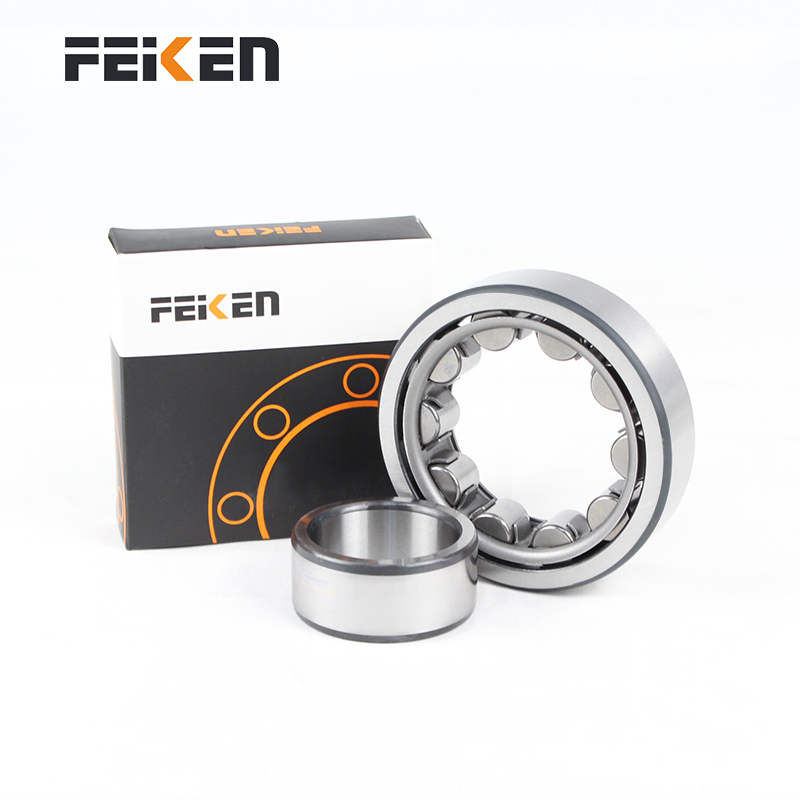

Cylindrical Roller Bearings

FEIKEN single row cylindrical roller bearings are available in many designs, series and sizes. The major design differences between the bearings presented in this section are in:

the cage design and material

the configuration of the inner and outer ring flanges

Bearing features

Low friction (Roller end / flange contact area)

The open flange design , together with the roller end design and surface finish, promote lubricant film formation resulting in lower friction and higher axial load carrying capacity.

Long service life

The logarithmic roller profile reduces edge stresses at the roller/raceway contact and sensitivity to misalignment and shaft deflection.

Enhanced operational reliability

The surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.

Separable and interchangeable

The separable components of FEIKEN cylindrical roller bearings are interchangeable . This facilitates mounting and dismounting, as well as maintenance inspections.

High speed capability

The cage designs are suitable for high speeds, rapid accelerations and peak loads.
